  • מערכת בתנועה Smart Qbing של DIGI מותאמות לביצוע מדידה של חבילות בזמן שהן נעות על מסוע מהיר.
  • דגמים שונים של ה Smart Qbing משתמשים במגוון של טכנולוגיות חישה למדידת אורך,רוחב וגובה של חבילה במהירויות
    של עד 120 מטר בדקה.

Smart Qbing is a system designed for logistics centers that fully automates dimensioning and weighing of packages. Get quick and accurate measurements by simply passing the items along on the conveyor. As an industry first, Smart Qbing can measure items that are as little as 5 mm thick. In today's busy logistics workplace, pressured by the rapid rise in delivery service use coupled with a troubling increase in re-deliveries due to customer absence, speedy and accurate measurement of package dimensions can dramatically assist in streamlining operations and reducing costs.

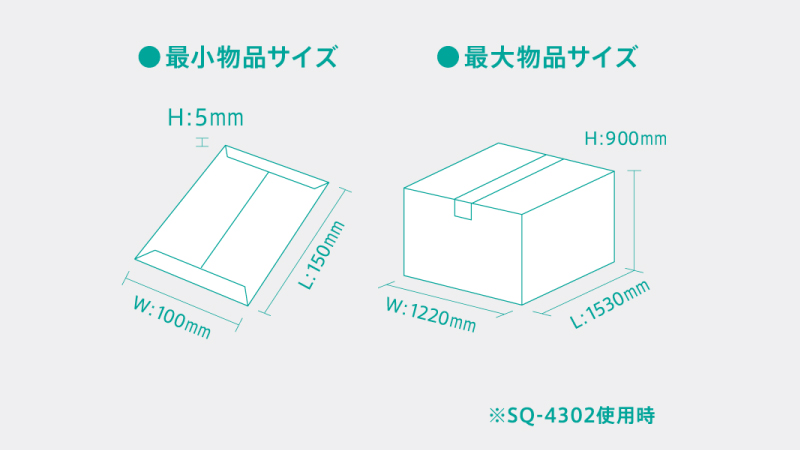

A first for the logistics industry! Measuring packages with 5 mm thickness!

Smart Qbing has a high-precision infrared transmission sensor built into its gate sensor, allowing three-dimensional measurements with 5 mm pitch.  By adding our Thin Item Detection option, the system can automatically dimension items of as little as 5 mm thick. Conventional systems have only been able to handle items of at least 3 cm thickness.  So, being able to automatically measure 5 mm-thick items is truly a first for the industry.



Non-stop speedy dimmension and weight measurement

Three built-in scales under the conveyor do the weight measurement. Using a patented weighing algorithm, packages with as little as 40 cm spacing on the conveyor can be accurately weighed one after another at high speed without missing a single item. Combining the 40 cm spacing with Smart Qbing's impressive 120 m/minute conveyor speed, you can process up to 9000 cases/hour for an average item length of 40 cm. DIGI has achieved this level of performance because we are a weigh scale manufacturer, and high-speed processing is our strong point.
